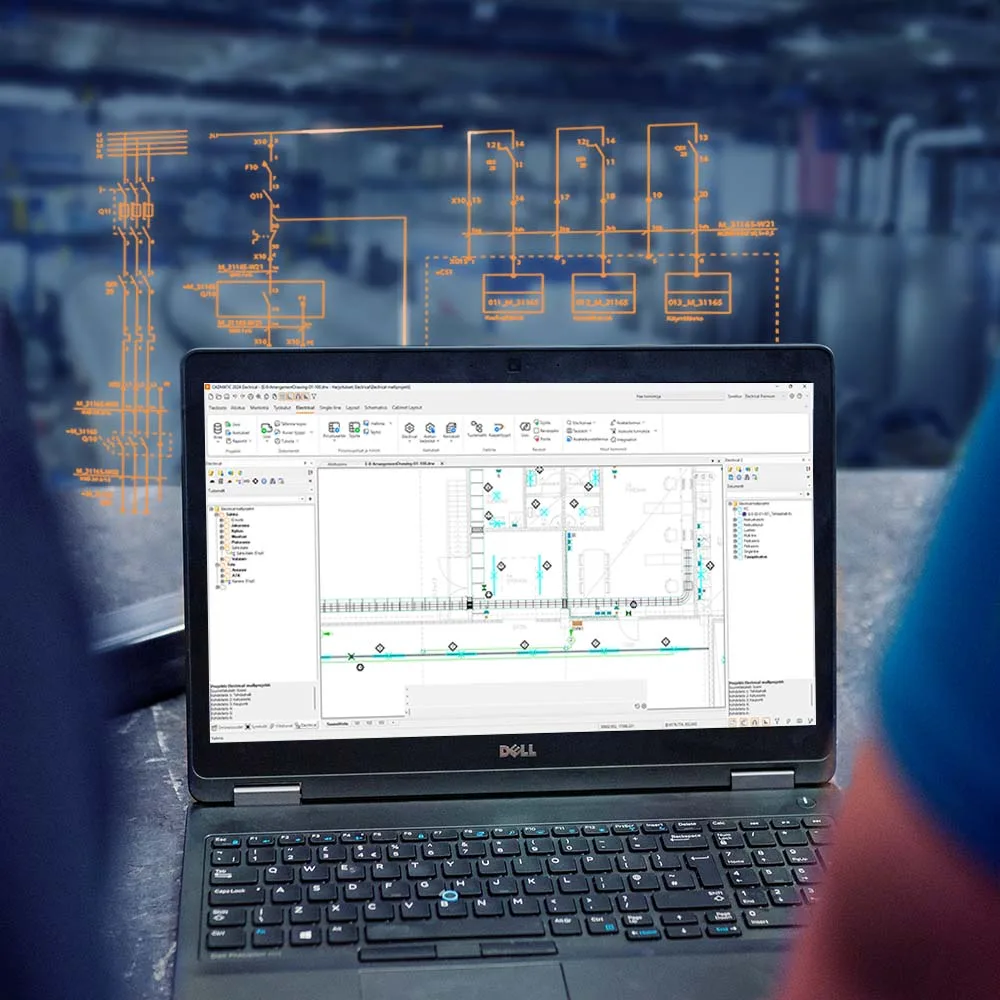

CADMATIC Electrical Trial - Image 2

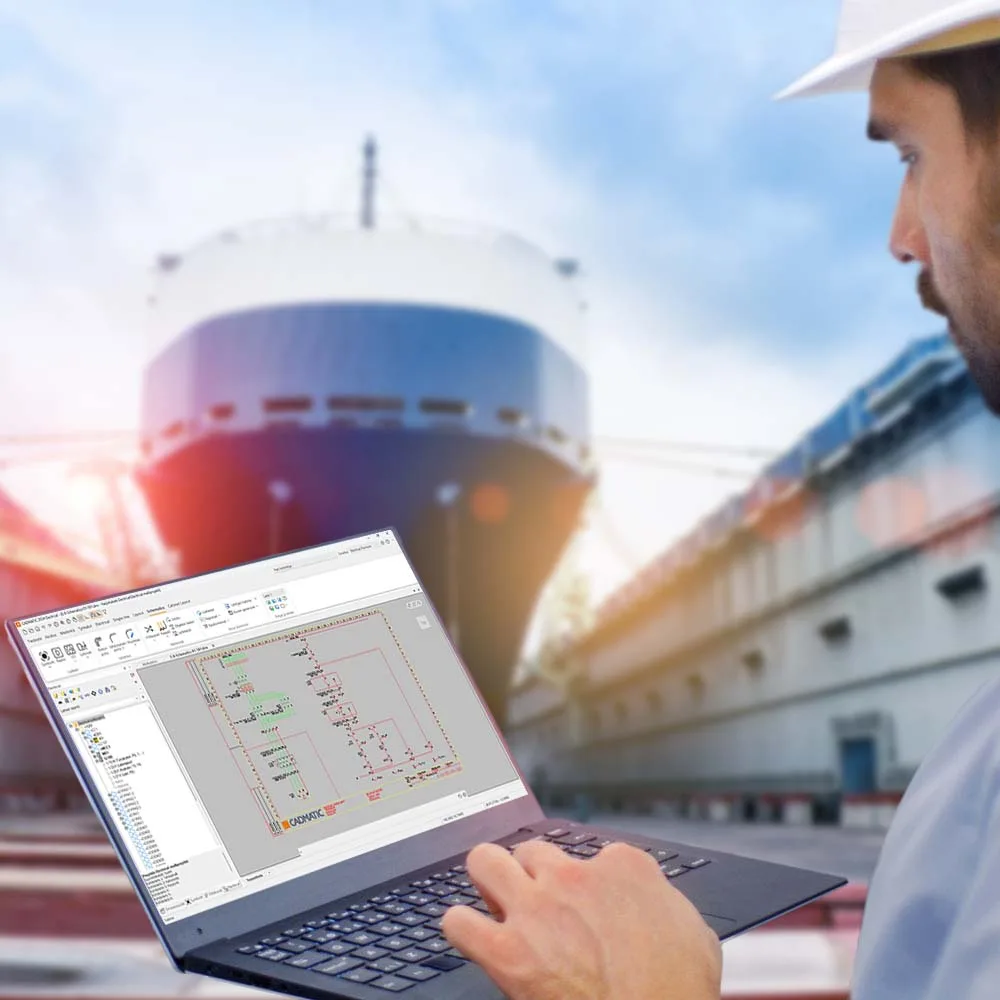

CADMATIC Electrical Trial - Image 3

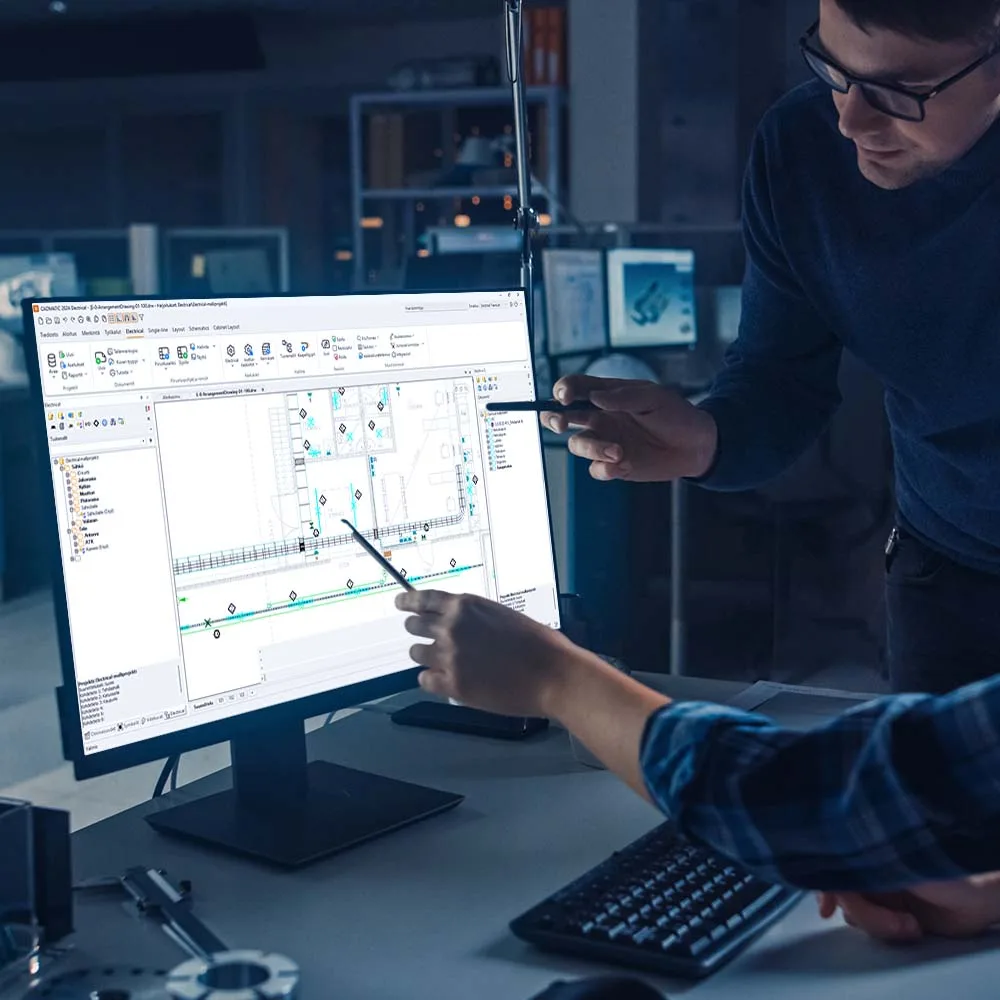

CADMATIC Electrical Trial - Image 4

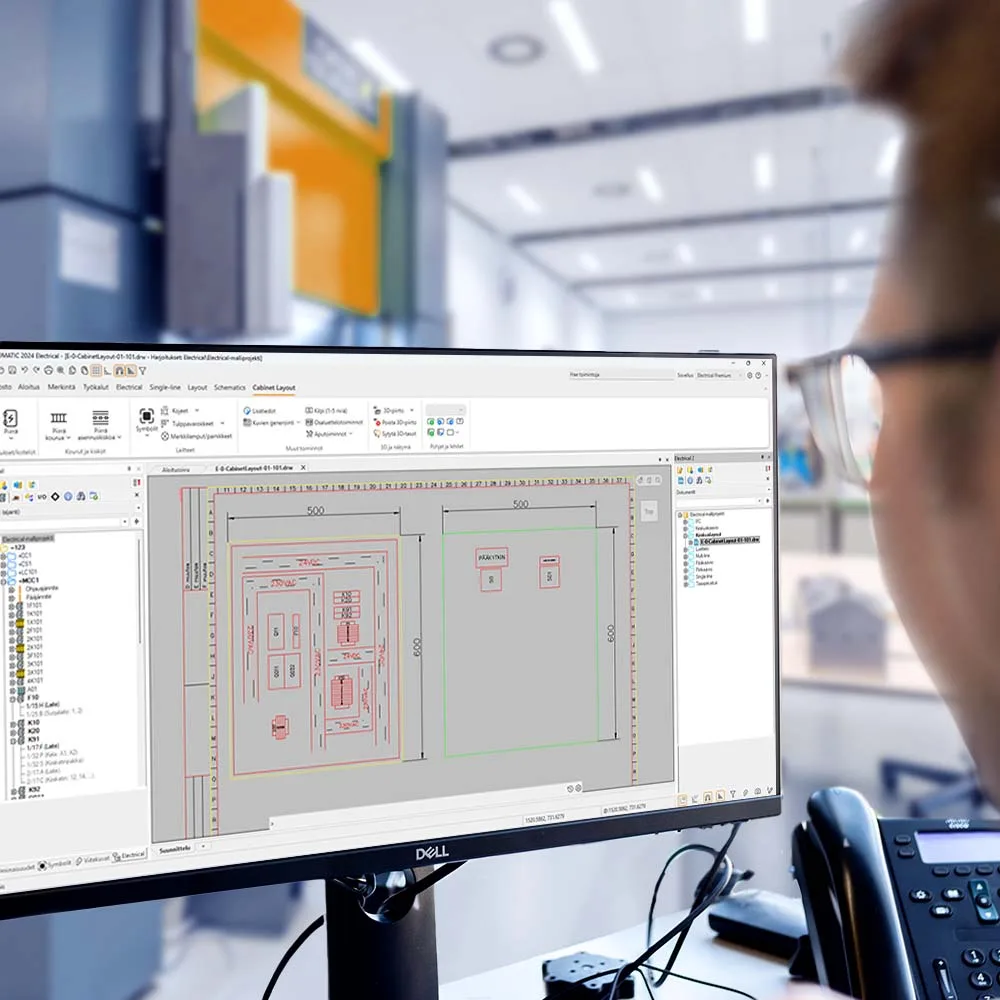

CADMATIC Electrical Trial - Image 5

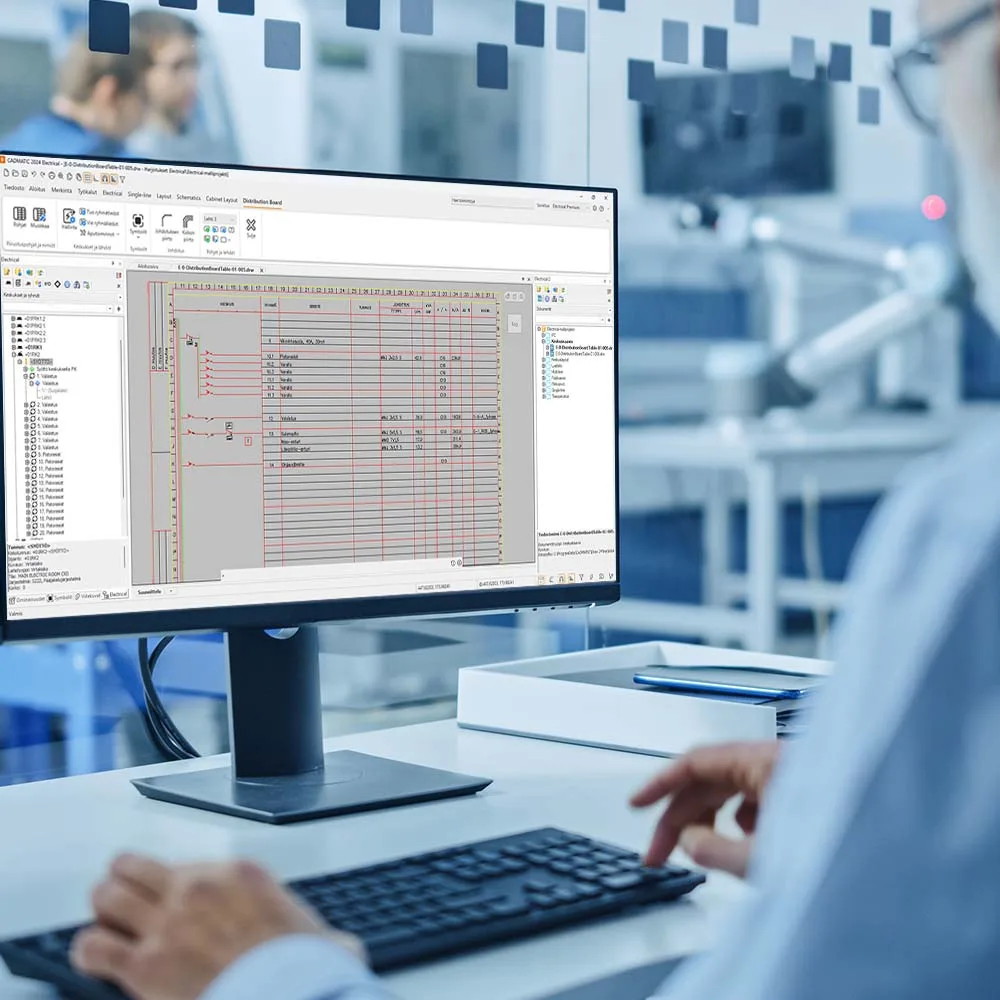

CADMATIC Electrical Trial - Image 6

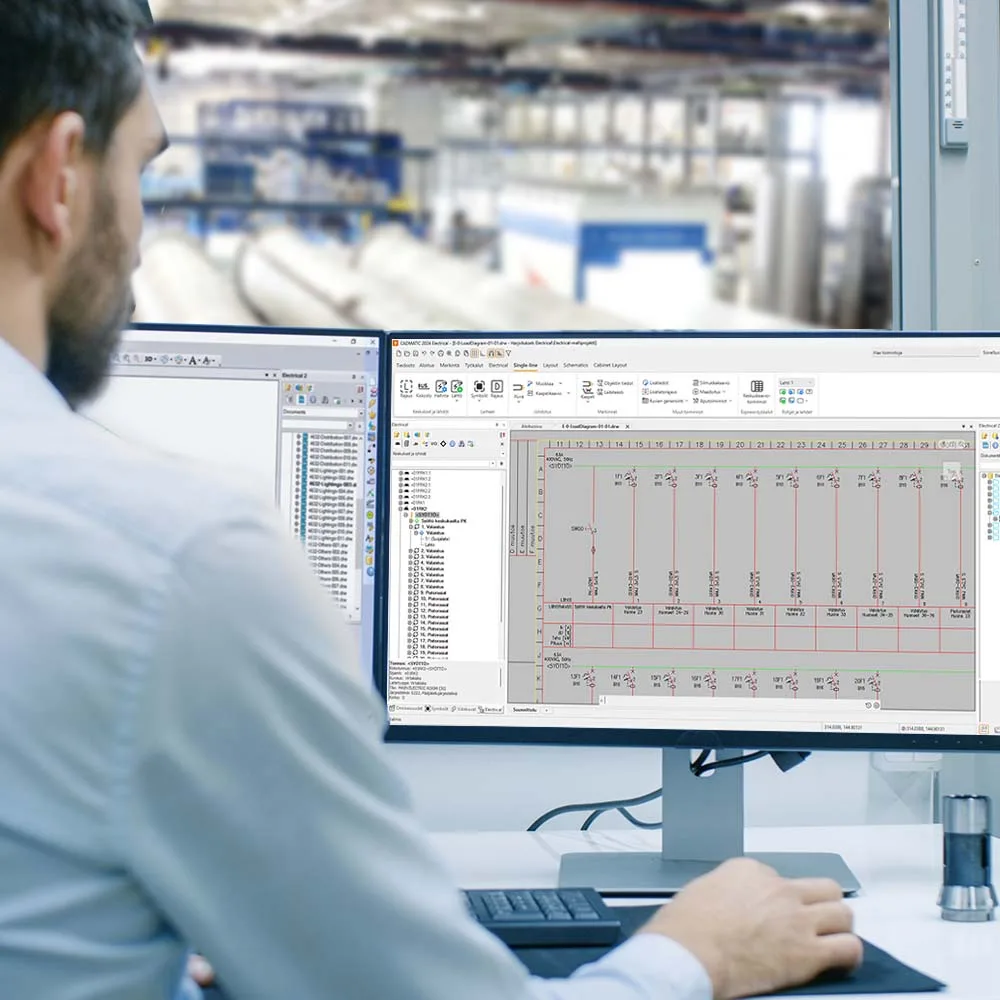

CADMATIC Electrical Trial - Image 7

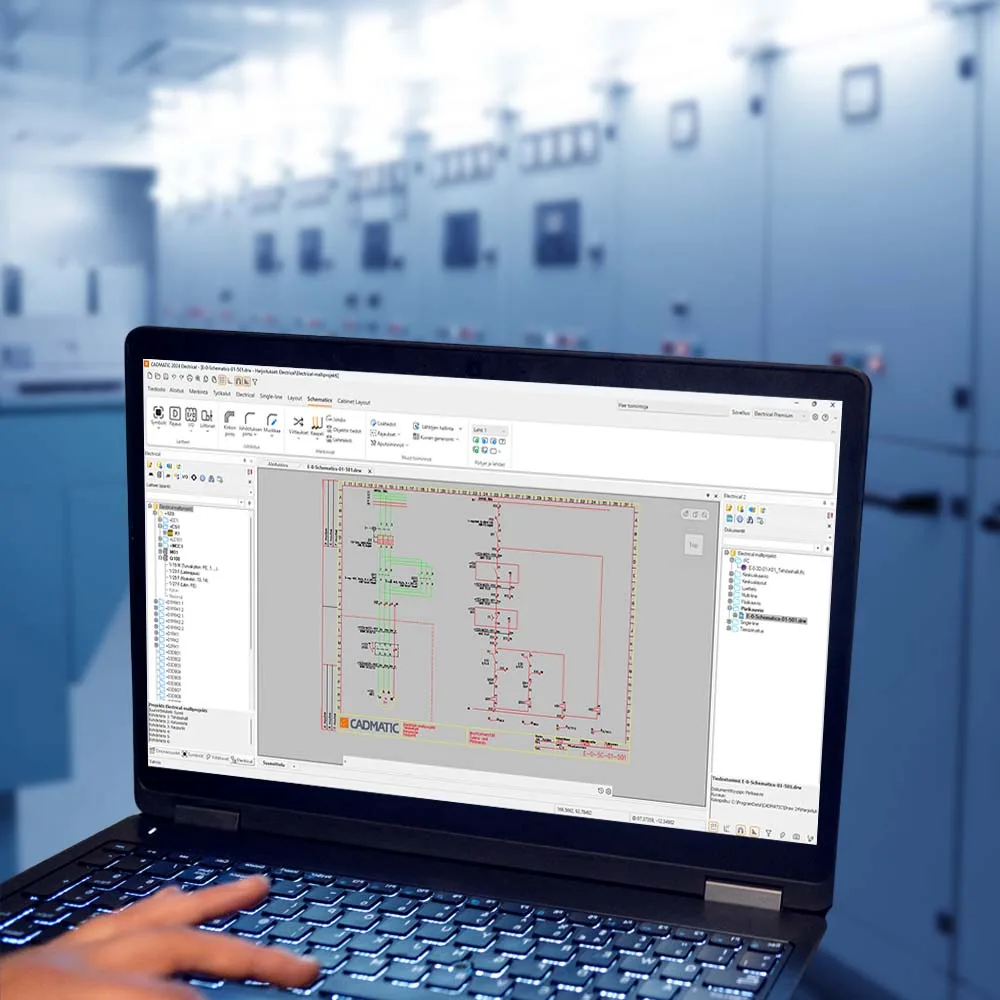

CADMATIC Electrical Trial - Image 8

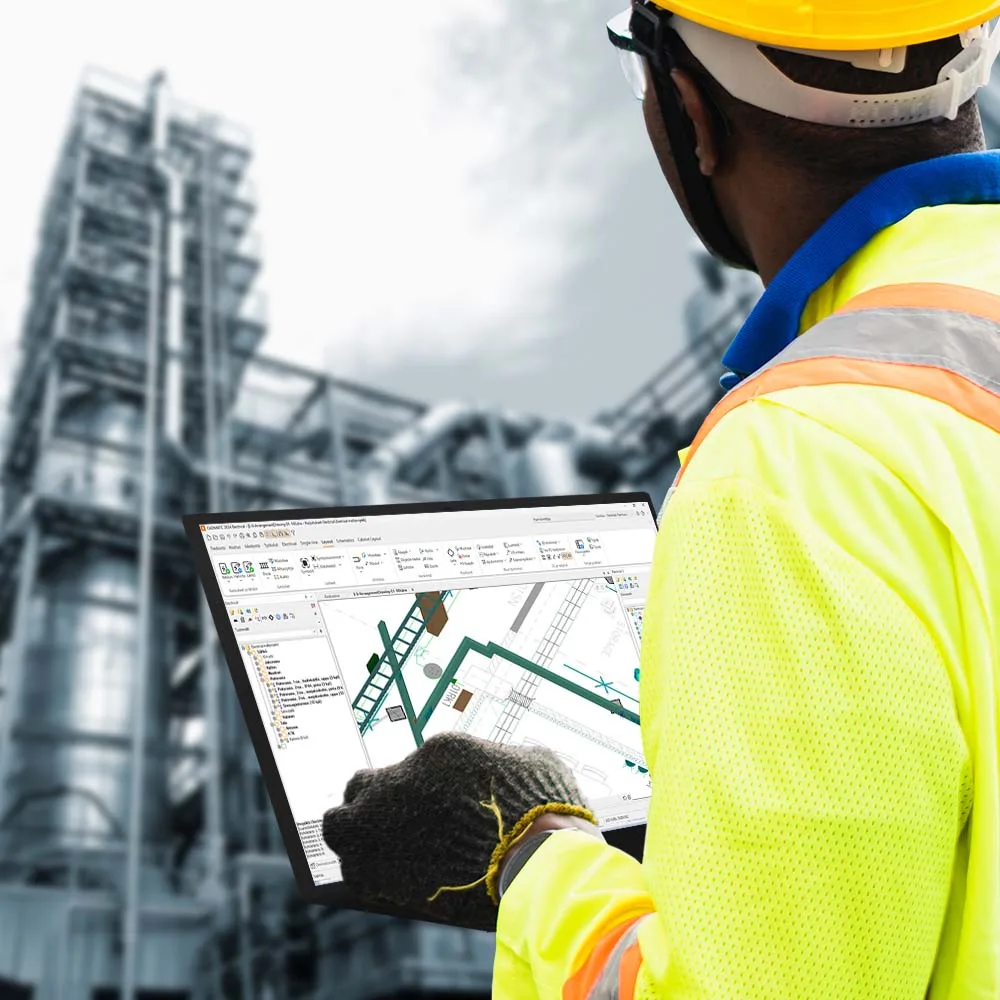

CADMATIC Electrical Trial - Image 9

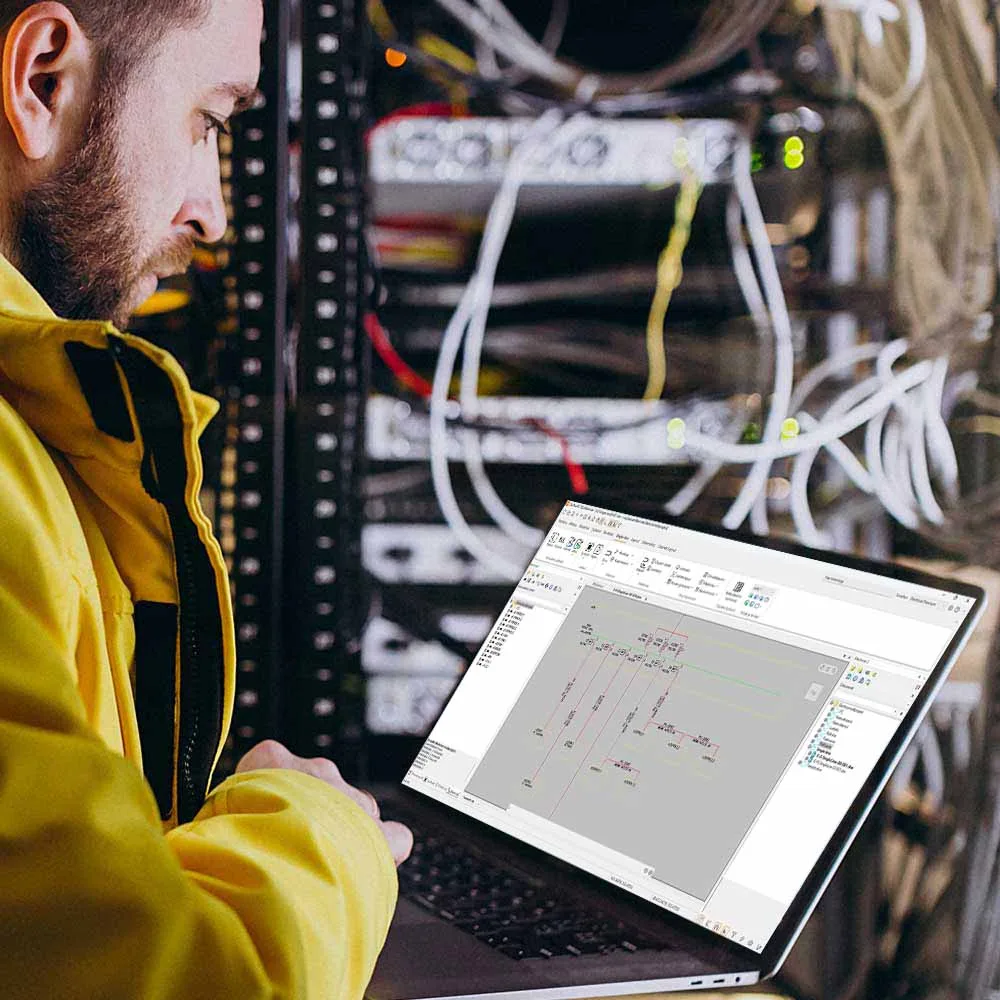

CADMATIC Electrical Trial - Image 10
0€
If you're unsure which CADMATIC Electrical version suits you best, we recommend watching our Electrical webinar


CADMATIC Electrical Trial offers you a once-off 30-day trial period to explore our three different electrical offerings at the same time: CADMATIC Electrical Lite, CADMATIC Electrical Basic, and CADMATIC Electrical Premium. Optimize and maximize your design output while saving time and delivering the best project quality possible.

Description

CADMATIC Electrical Trial offers you a once-off 30-day trial period to explore our three different electrical offerings at the same time: CADMATIC Electrical Lite, CADMATIC Electrical Basic, and CADMATIC Electrical Premium. You will be able to switch between the three products in real time to test their capabilities and match them with your needs.

CADMATIC Electrical is the first comprehensive database-based solution for the different design and documentation needs of electrical and automation engineering: all electrical, instrumentation, and automation engineering with one design application.

See basic information about the products below:

  • CADMATIC Electrical Lite – Ideal for electrical and automation documentation on smaller projects. Includes basic CAD engine with common CAD functionalities and symbol libraries.
  • CADMATIC Electrical Basic – More advanced electrical and automation tool suitable for small to medium-sized projects. Includes advanced functionalities to aid the electrical design process.
  • CADMATIC Electrical Premium – Top-of-the-range database-based and multi-user design software for electrical and automation engineering in large and complex design projects. Integration with other Cadmatic design applications.

By clicking the “get the free trial” button, you will be directed to a form to fill out. After submitting the form, you will receive an email with the installation details. After installing the software on your computer, you will have 30 days to enjoy and experiment with the Electrical plans above. Once you have completed your trial, you can visit our store to purchase the electrical plan of your choice.

Terms of use

The CADMATIC Electrical trial offers you the chance to explore the full capabilities of the latest versions of CADMATIC Electrical for 30 days. The trial period starts immediately after you have filled out the CADMATIC Electrical trial form. Please note that you can use the trial only once. The CADMATIC Electrical trial cannot be installed on computers that already have licensed CADMATIC Draw or CADMTATIC Electrical software installed. If you want a new trial period, please contact our sales team at store@cadmatic.com. Choose CADMATIC Electrical and maximize your design output through integrated and high-level features and workflows.



Technical requirements

To ensure the best possible experience with CADMATIC Electrical, your system should meet the following requirements:
  • Windows 10 and 11 64-bit
  • Intel Core i5 or i7 (minimum requirement is dual-core Intel Pentium 4 or AMD)
  •  8GB memory (minimum 4GB)
  • 5GB free disk space
  • OpenGL 4.3 compatible Full HD resolution display driver with dedicated memory
